AMSOIL Marine
Dual Remote By-Pass Oil FIltration

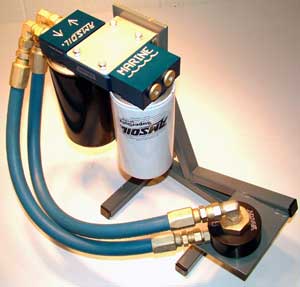

AMSOIL Marine Dual Remote Filtration System (BMK18)
The AMSOIL BMK18 is packaged in kit form, which includes the Dual filter mount, mounting hardware, hoses, hose fittings, component parts and installation instructions. In addition, adapter kits of four different sizes enable the BMK18 to be installed on a wide variety of recreational and light commercial marine engines.

See Pricing Information or Place an Order

Product Description
The AMSOIL Marine Dual Remote Filtration System (BMK-18) offers easily accessible remote mounting capability for a full flow spin-on oil filter and a spin-on style by-pass oil filter. This unique combination of both full flow and by-pass filtration on a single mounting manifold is the only system of this kind designed specifically for marine applications.

Improved Performance
The effects of marine engines running predominantly at or near full throttle after extended periods of non-activity include high operating temperatures and increased potential for wear on engine components. Dual remote filtration is a highly efficient filtering process capable of removing the vast majority of wear-causing particles which are in the 5-20 micron range. Dual remote filtration also has the ability to effectively remove particles down to one micron in size. The AMSOIL Marine Dual Remote Filtration System (BMK-18) offers a clear advantage by providing better oil filtration, increased oil capacity and longer oil and filter life.

Reduces Heat
The BMK-18 requires a one- to two-quart oil volume increase, offering increased oil cooling capabilities. The additional hoses, fittings, filters and aluminum mount assemblies also allow the engine oil to dissipate heat more efficiently as it passes through the filtration system, extending the service life of both the engine and the engine oil. Finally, the BMK-18 by-pass filter has the ability to remove condensation and moisture from the lubrication system.

Prevents Moisture
Moisture typically condenses inside engines to combine with residual combustion gases when engines are idle or run for short periods of time, especially in humid environments. The resulting compounds strip beneficial additives from engine oil and act as corrosive substances that further degrade the engine oil and promote engine wear.

Outstanding Durability
The Marine Dual Remote Filtration System is designed to be used in harsh marine environments. The hose fittings are coated with a 3 ml layer of Alumiplate™and 1 ml of zinc and yellow chromate. This Alumiplate coating is 10 times more corrosion resistant than standard zinc and yellow chromate plated fittings. While standard hydraulic fittings typically survive 96 hours in the grueling ASTM B-117 Salt Spray Test, the Alumiplate coated AMSOIL Marine Bypass System fittings lasted over 1,000 hours. In addition, the fasteners and mounting bracket are stainless steel and the hoses are U.S. Coast Guard approved.

Fewer Oil Changes
Depending on the boat owner's hours of use, the improved filtration of the Marine Dual Remote System, along with the use of AMSOIL synthetic lubricants, could completely eliminate oil and filter changes during a typical boating season. With marine engines located in a relatively confined and remote space within the watercraft, ease of filter access and reduced oil spillage are also significant benefits of the BMK-18.

The remote mount of the BMK-18 is also compatible with the new AMS-Oiler™ Oil Precharger (AMK-01) for added engine protection during the frequent dry starting that is typical of marine engines that sit idle for even short periods of time.

Applications
A large number of marine diesel engines have by-pass oil filtration systems installed by the engine manufacturer. Until now, however, this technology has not been available to smaller pleasure boats and light commercial marine applications. The Marine Dual Remote Filtration System was specifically designed for recreational and commercial marine applications that use inboard or inboard/outboard stern drive engines.

The BMK-18 is packaged in kit form, which includes the Dual filter mount, mounting hardware, hoses, hose fittings, component parts and installation instructions. In addition, adapter kits of four different sizes enable the BMK-18 to be installed on a wide variety of recreational and light commercial marine gasoline-fueled engines, including Chris Craft, Chrysler, Crusader, Evinrude, Johnson, Gray Marine, Mercruiser, OMC, Pleasurecraft, Universal, Volvo Penta, and Westerbeke. The BMK-18 kit offers a new heavy duty, machined aluminum adapter and retaining nut that fits on the existing oil filter mount. Each adapter kit is application specific and must be ordered separately. Please consult BMK-18 Adapter Kit Reference Guide (G-2051) for specific applications. Adapter kits are available for the most popular filter thread sizes. When ordering the BMK-18 request one of the following adapter kits:

• BK-195 for ¾” x 16 thread
• BK-196 for 13/16” x 16 thread
• BK-197 for 18 mm x 1.5 mm thread
• BK-198 for 20 mm x 1.5 mm thread

Also, for ease of installation in some applications, optional 90 degree fittings (BK-199 and BK-200) can be mounted on the filter adapter collar. These parts are also sold separately.

The AMSOIL Marine Dual Remote Filtration System represents the cutting edge of filtration technology-another example of AMSOIL's commitment to providing quality innovations that can benefit consumers everywhere.

Specifics

• Oil Capacity 1 to 2 quart increase
• Corrosion resistant Yes
• External oil filter changes Yes
• Remove moisture and condensation Yes
• Ease/convenience of maintenance Yes
• Contaminant removal Down to 1 micron

BMK-18 Frequently Asked Questions
BMK-18 Adapter Kit Reference Guide (G-2051) (PDF - 23K)
BP-239 Marine Dual Remote Filtration System Installation Instructions (PDF - 1.80MB)
